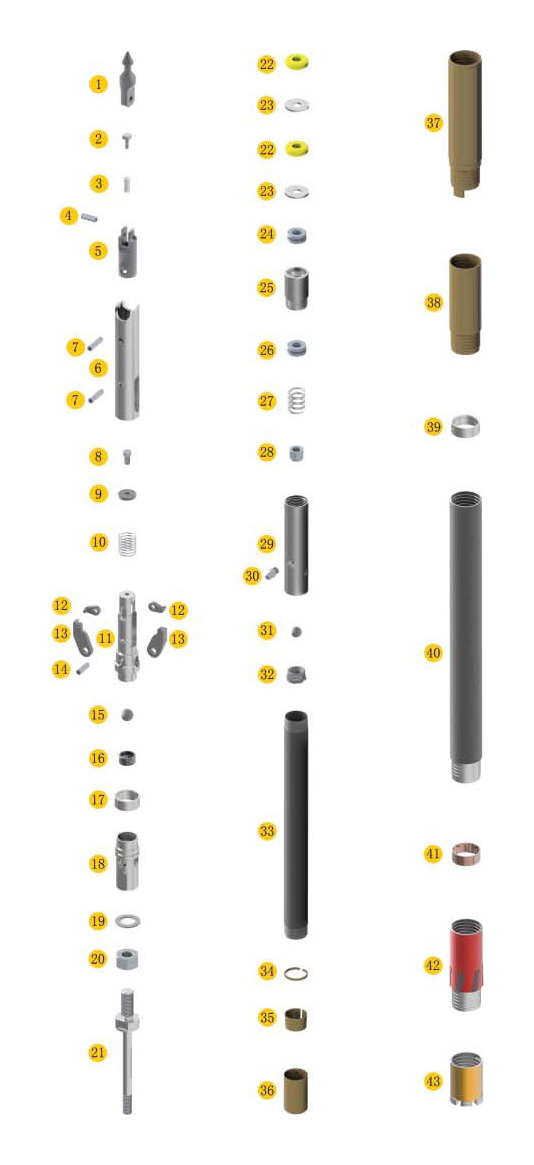

圖號 NO.
|
編號
Code
|
名稱 Description
|
數量 Qty
|
|
1
|
NC-01
|
撈矛頭 Spearhead Point
|
1
|
|
2
|
NC-02
|
定位壓塊 Detent Plunger
|
1
|
|
3
|
NC-03
|
撈矛頭彈簧 Compression Spring
|
1
|
|
4
|
NC-04
|
彈性圓柱銷 10x28 Spring Pin 10x28
|
1
|
|
5
|
NC-05
|
撈矛座 Spearhead Base
|
1
|
|
6
|
NC-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
NC-07
|
彈性圓柱銷 12x50 Spring Pin 12x50
|
2
|
|
8
|
NC-08
|
六角頭螺栓 3/8"-16UNCx3/4' Bolt
|
1
|
|
9
|
NC-09
|
壓板Washer
|
1
|
|
10
|
NC-10
|
彈卡銀彈簧 Latch Compression Spring
|
1
|
|
11
|
NC-11
|
彈卡架 Upper Latch Body
|
1
|
|
12
|
NC -12
|
限位塊Link
|
2
|
|
13
|
NC-13
|
彈卡銀Latch
|
2
|
|
14
|
NC-14
|
彈性圓柱銷 12x40 Spring Pin 12x40
|
1
|
|
15
|
NC-15
|
鋼球傘22 Stainless Steel Ball <)>22
|
1
|
|
16
|
NC-16
|
鋼球架 Indicator Bushing
|
1
|
|
17
|
NC-17
|
懸掛環 Landing Shoulder
|
1
|
|
18
|
NC-18
|
單向閥 Check Valve Body
|
1
|
|
19
|
NC-19
|
防松墊圈 1 1/8" Washer 1 1/8" Nord-Lock
|
1
|
|
20
|
NC-20
|
六角螺母 1 1/8"-7UNC Hex Nut
|
1
|
|
21
|
NC-21
|
連接軸Spindle
|
1
|
|
22
|
NC-22
|
報倌膠圈 Shut-off Valve Hard
|
2
|
|
23
|
NC-23
|
隔片 Valve Adjusting Washer
|
2
|
|
24
|
NC-24
|
推力軸承 Thrust Bearing
|
1
|
|
25
|
NC-25
|
滑套(軸承座)Spindle Bushing
|
1
|
|
26
|
NC - 26
|
推力軸承 Thrust Bearing
|
1
|
|
27
|
NC-27
|
彈簧 Compression Spring
|
1
|
|
28
|
NC-28
|
自鎖螺母3/4--10UNC Lock Nut
|
1
|
|
29
|
NC-29
|
彈簧套 InnerTube Cap
|
1
|
|
30
|
NC-30
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
|
31
|
NC-31
|
鋼球中 φ22 Stainless Steel Ball φ22
|
1
|
|
32
|
NC-32
|
單向閥 Check Valve Body
|
1
|
|
33
|
NC - 33
|
內管 InnerTube
|
1
|
|
34
|
NC-34
|
擋圈 Stop Ring
|
1
|
|
35
|
NC - 35
|
卡簧 Core Lifter
|
1
|
|
36
|
NC-36
|
卡簧座 Core Lifter Case
|
1
|
|
37
|
NC - 37
|
彈卡擋頭 Locking Coupling
|
1
|
|
38
|
NC - 38
|
彈卡室 Adaptor Coupling
|
1
|
|
39
|
NC-39
|
座環 Landing Ring
|
1
|
|
40
|
NC-40
|
外管 OuterTube
|
1
|
|
41
|
NC-41
|
扶正環 InnerTube Stabilizer
|
1
|
|
42
|
NC-42
|
擴孔器 Reaming Shell
|
1
|
|
43
|
NC-43
|
鉆頭 Diamond Core Bit
|
1
|
