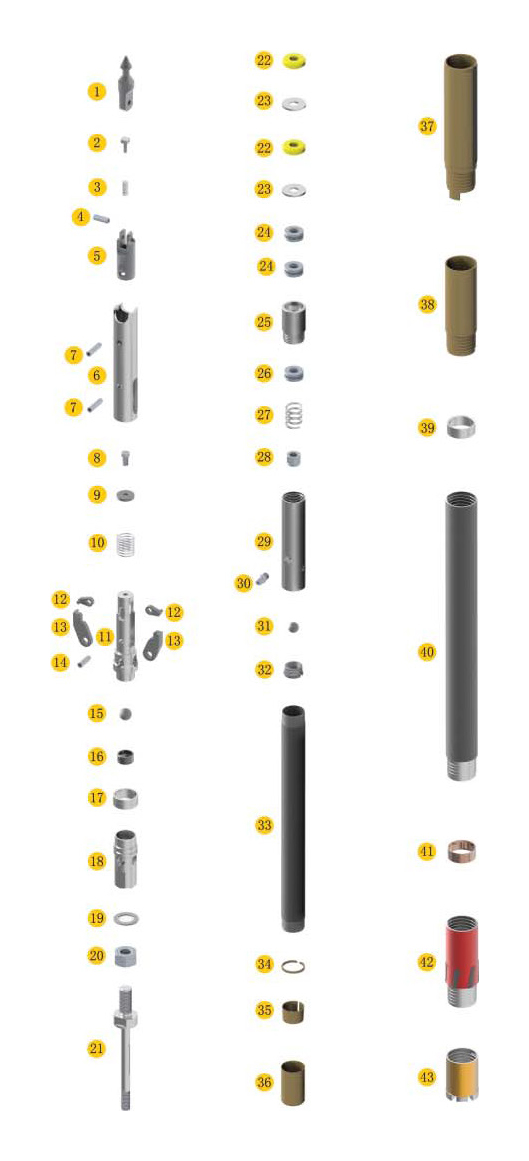

圖號 NO.
|
編號
Code
|
名稱 Description
|
數量 Qty
|
1
|
HC-01
|
撈矛頭 Spearhead Point
|
1
|
2
|
HC-02
|
定位壓塊 Detent Plunger
|
1
|
3
|
HC-03
|
撈矛頭彈簧 Compression Spring
|
1
|
4
|
HC-04
|
彈性圓柱銷 10x28 Spring Pin 10x28
|
1
|
5
|
HC-05
|
撈矛座 Spearhead Base
|
1
|
6
|
HC-06
|
回收管 Latch Retracting Case
|
1
|
7
|
HC-07
|
彈性圓柱銷 12x70 Spring Pin 12x70
|
2
|
8
|
HC-08
|
六角頭螺栓3/8"-16UNCx3/4"- Bolt
|
1
|
9
|
HC-09
|
壓板Washer
|
1
|
10
|
HC-10
|
彈卡銀彈簧 Latch Compression Spring
|
1
|
11
|
HC-11
|
彈卡架 Upper Latch Body
|
1
|
12
|
HC-12
|
限位塊Link
|
2
|
13
|
HC-13
|
彈卡鉗Latch
|
2
|
14
|
HC-14
|
彈性圓柱銷 12x55 Spring Pin 12x55
|
1
|
15
|
HC-15
|
鋼球 φ 22 Stainless Steel Ball φ 22
|
1
|
16
|
HC-16
|
鋼球架 Indicator Bushing
|
1
|
17
|
HC-17
|
懸掛環 Landing Shoulder
|
1
|
18
|
HC-18
|
單向閥 Check Valve Body
|
1
|
19
|
HC-19
|
防松墊圈 1 1/4" Washer 1 1/4" Nord-Lock
|
1
|
20
|
HC-20
|
六角螺母 1 1/4"--7UNC Hex Nut
|
1
|
21
|
HC-21
|
連接軸Spindle
|
1
|
22
|
HC-22
|
報信肢圈 Shut-off Valve Hard
|
2
|
23
|
HC-23
|
隔片 Valve Adjusting Washer
|
2
|
24
|
HC-24
|
推力軸承 Thrust Bearing
|
2
|
25
|
HC-25
|
滑套(軸承座)Spindle Bushing
|
1
|
26
|
HC-26
|
推力軸承 Thrust Bearing
|
1
|
27
|
HC-27
|
彈簧 Compression Spring
|
1
|
28
|
HC-28
|
自鎖螺母 1"-8UNC Lock Nut
|
1
|
29
|
HC-29
|
彈簧套 InnerTubeCap
|
1
|
30
|
HC-30
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
31
|
HC-31
|
鋼球 φ22 Stainless Steel Ball φ22
|
1
|
32
|
HC-32
|
單向閥 Check Valve Body
|
1
|
33
|
HC-33
|
內管 InnerTube
|
1
|
34
|
HC-34
|
擋圈 Stop Ring
|
1
|
35
|
HC-35
|
卡簧 Core Lifter
|
1
|
36
|
HC-36
|
卡簧座 Core Lifter Case
|
1
|
37
|
HC - 37
|
彈卡擋頭 Locking Coupling
|
1
|
38
|
HC-38
|
彈卡室 Adaptor Coupling
|
1
|
39
|
HC-39
|
座環 Landing Ring
|
1
|
40
|
HC-40
|
外管 Outer Tube
|
1
|
41
|
HC-41
|
扶正環 InnerTube Stabilizer
|
1
|
42
|
HC-42
|
擴孔器 Reaming Shell
|
1
|
43
|
HC-43
|
鉆頭 Diamond Core Bit
|
1
|
