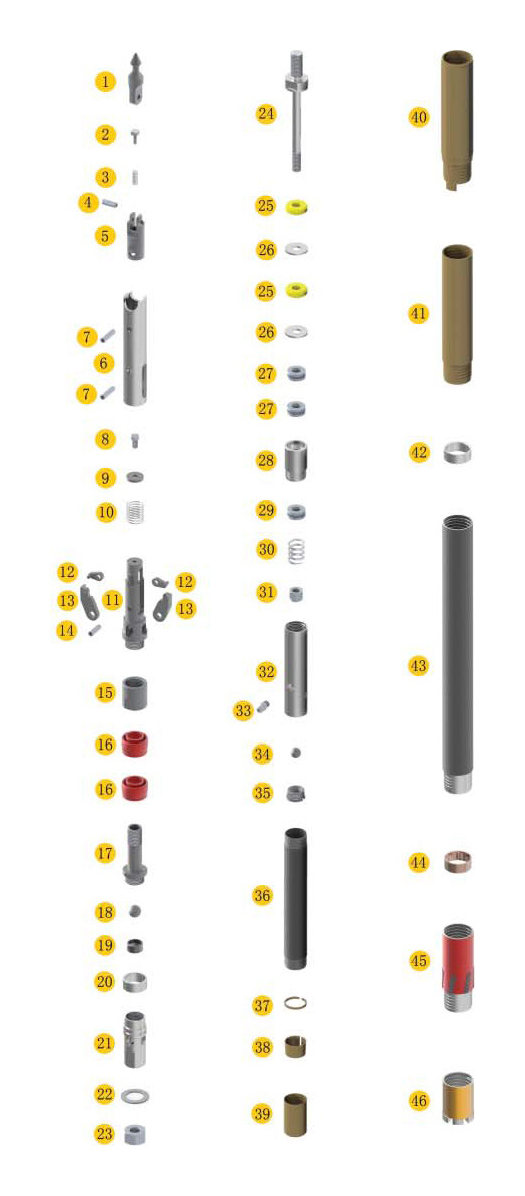

圖號 NO.
|
編號
Code
|
名稱 Description
|
數量 Qty
|
|
1
|
HQU-01
|
撈矛頭 Spearhead Point
|
1
|
|
2
|
HQU-02
|
定位壓塊 Detent Plunger
|
1
|
|
3
|
HQU-03
|
撈矛頭彈簧 Compression Spring
|
1
|
|
4
|
HQU-04
|
彈性圓柱銷 10x28 Spring Pin 10x28
|
1
|
|
5
|
HQU-05
|
撈矛座 Spearhead Base
|
1
|
|
6
|
HQU-06
|
回收管 Latch Retracting Case
|
1
|
|
7
|
HQU-07
|
彈性圓柱銷 12x70 Spring Pin 12x70
|
2
|
|
8
|
HQU-08
|
六角頭螺栓 3/8"-16UNCx3/4" Bolt
|
1
|
|
9
|
HQU-09
|
壓板 Washer
|
1
|
|
10
|
HQU-10
|
彈卡銀彈簧 Latch Compression Spring
|
1
|
|
11
|
HQU-11
|
彈卡架 Upper Latch Body
|
1
|
|
12
|
HQU-12
|
限位塊 Link
|
2
|
|
13
|
HQU-13
|
彈卡銀 Latch
|
2
|
|
14
|
HQU-14
|
彈性圓柱銷 12x55 Spring Pin 12x55
|
1
|
|
15
|
HQU-15
|
轉接頭 Latch Body Coupler
|
1
|
|
16
|
HQU-16
|
活塞 Pump-in Lip Seal
|
2
|
|
17
|
HQU-17
|
活塞軸 Spindle of Pump-in Lip Seal
|
1
|
|
18
|
HQU-18
|
鋼球 φ22 Stainless Steel Ball φ22
|
1
|
|
19
|
HQU-19
|
鋼球架 Indicator Bushing
|
1
|
|
20
|
HQU-20
|
懸掛環 Landing Shoulder
|
1
|
|
21
|
HQU-21
|
單向閥 Check Valve Body
|
1
|
|
22
|
HQU-22
|
防松墊圈 1 1/4" Washerl 1/4" Nord-Lock
|
1
|
|
23
|
HQU-23
|
六角螺母 1 1/4"-7UNC Hex Nut
|
1
|
|
24
|
HQU-24
|
連接軸 Spindle
|
1
|
|
25
|
HQU-25
|
報信膠圈 Shut-off Valve Hard
|
2
|
|
26
|
HQU-26
|
隔片 Valve Adjusting Washer
|
2
|
|
27
|
HQU-27
|
推力軸承 Thrust Bearing
|
2
|
|
28
|
HQU-28
|
滑套(軸承座)Spindle Bushing
|
1
|
|
29
|
HQU-29
|
推力軸承 Thrust Bearing
|
1
|
|
30
|
HQU-30
|
彈簧 Compression Spring
|
1
|
|
31
|
HQU-31
|
自鎖螺母 1"-SUNC Lock Nut
|
1
|
|
32
|
HQU-32
|
彈簧套 InnerTube Cap
|
1
|
|
33
|
HQU-33
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
|
34
|
HQU-34
|
鋼球 φ22 Stainless Steel Ball φ22
|
1
|
|
35
|
HQU-35
|
單向閥 Check Valve Body
|
1
|
|
36
|
HQU-36
|
內管 InnerTube
|
1
|
|
37
|
HQU-37
|
擋圈 Stop Ring
|
1
|
|
38
|
HQU-38
|
卡簧 Core Lifter
|
1
|
|
39
|
HQU-39
|
卡簧座 Core Lifter Case
|
1
|
|
40
|
HQU-40
|
彈卡擋頭 Locking Coupling
|
1
|
|
41
|
HQU-41
|
彈卡室 Adaptor Coupling
|
1
|
|
42
|
HQU-42
|
座環 Landing Ring
|
1
|
|
43
|
HQU-43
|
外管Outer Tube
|
1
|
|
44
|
HQU-44
|
扶正環 Inner Tube Stabilizer
|
1
|
|
45
|
HQU-45
|
擴孔器 Reaming Shell
|
1
|
|
46
|
HQU-46
|
鉆頭 Diamond Core Bit
|
1
|
