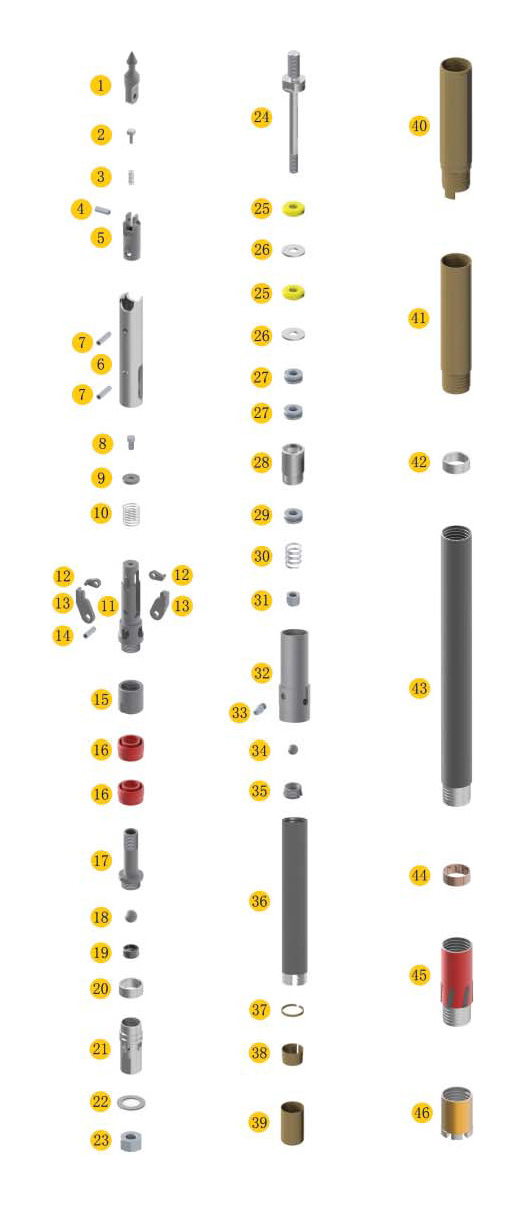

圖號 NO.
|
編號
Code
|
名稱 Description
|
數量 Qty
|
1
|
HTWU-01
|
撈矛頭 Spearhead Point
|
1
|
2
|
HTWU-02
|
定位壓塊 Detent Plunger
|
1
|
3
|
HTWU-03
|
撈矛頭彈簧 Compression Spring
|
1
|
4
|
HTWU-04
|
彈性圓柱銷 10x28 Spring Pin 10x28
|
1
|
5
|
HTWU-05
|
撈矛座 Spearhead Base
|
1
|
6
|
HTWU-06
|
回收管 Latch Retracting Case
|
1
|
7
|
HTWU-07
|
彈性圓柱銷 12x70 Spring Pin 12x70
|
2
|
8
|
HTWU-08
|
六角頭螺栓 3/8"-16UNCx3/4"Bolt
|
1
|
9
|
HTWU-09
|
壓板Washer
|
1
|
10
|
HTWU-10
|
彈卡銀彈簧 Latch Compression Spring
|
1
|
11
|
HTWU-11
|
彈卡架 Upper Latch Body
|
1
|
12
|
HTWU-12
|
限位塊Link
|
2
|
13
|
HTWU-13
|
彈卡銀Latch
|
2
|
14
|
HTWU-14
|
彈性圓柱銷 12x55 Spring Pin 12x55
|
1
|
15
|
HTWU-15
|
轉接頭 Latch Body Coupler
|
1
|
16
|
HTWU-16
|
活塞 Pump-in Lip Seal
|
2
|
17
|
HTWU-17
|
活塞軸 Spindle of Pump-in Lip Seal
|
1
|
18
|
HTWU-18
|
鋼球 φ22 Stainless Steel Ball φ22
|
1
|
19
|
HTWU-19
|
鋼球架 Indicator Bushing
|
1
|
20
|
HTWU-20
|
懸掛環 Landing Shoulder
|
1
|
21
|
HTWU-21
|
單向閥 Check Valve Body
|
1
|
22
|
HTWU-22
|
防松墊圈 1 1/4" Washerl 1/4" Nord-Lock
|
1
|
23
|
HTWU-23
|
六角螺母 1 1/4"-7UNC Hex Nut
|
1
|
24
|
HTWU-24
|
連接軸Spindle
|
1
|
25
|
HTWU-25
|
報信膠圈 Shut-off Valve Hard
|
2
|
26
|
HTWU-26
|
隔片 Valve Adjusting Washer
|
2
|
27
|
HTWU-27
|
推力軸承 Thrust Bearing
|
2
|
28
|
HTWU-28
|
滑套(軸承座)Spindle Bushing
|
1
|
29
|
HTWU-29
|
推力軸承 Thrust Bearing
|
1
|
30
|
HTWU-30
|
彈簧 Compression Spring
|
1
|
31
|
HTWU-31
|
自鎖螺母 1"-8UNC Lock Nut
|
1
|
32
|
HTWU-32
|
彈簧套 InnerTube Cap
|
1
|
33
|
HTWU-33
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
34
|
HTWU-34
|
鋼球 φ22 Stainless Steel Ball φ22
|
1
|
35
|
HTWU-35
|
單向閥 Check Valve Body
|
1
|
36
|
HTWU-36
|
內管 InnerTube
|
1
|
37
|
HTWU-37
|
擋圈 Stop Ring
|
1
|
38
|
HTWU-38
|
卡費 Core Lifter
|
1
|
39
|
HTWU-39
|
卡資座 Core Lifter Case
|
1
|
40
|
HTWU-40
|
彈卡擋頭 Locking Coupling
|
1
|
41
|
HTWU-41
|
彈卡室 Adaptor Coupling
|
1
|
42
|
HTWU-42
|
座環 Landing Ring
|
1
|
43
|
HTWU-43
|
外管 OuterTube
|
1
|
44
|
HTWU-44
|
扶正環 InnerTube Stabilizer
|
1
|
45
|
HTWU-45
|
擴孔器 Reaming Shell
|
1
|
46
|
HTWU-46
|
鉆頭 Diamond Core Bit
|
1
|
