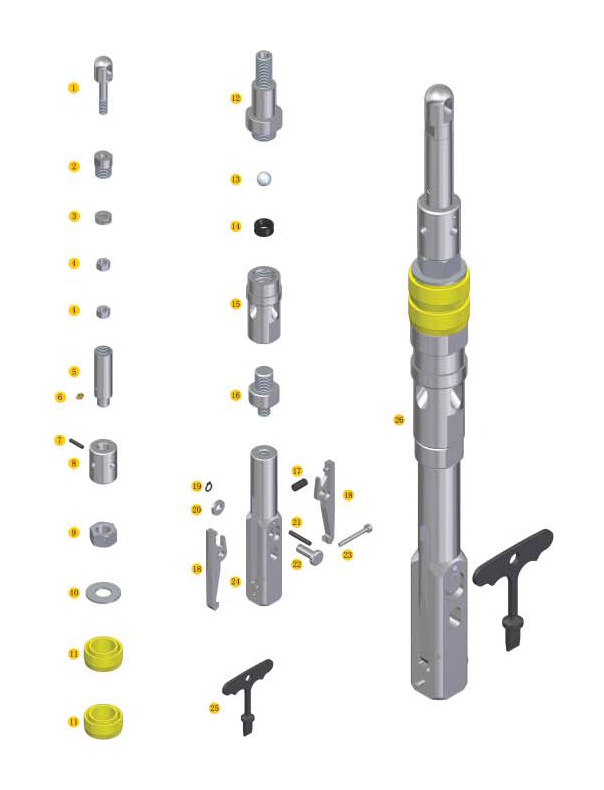

CQU系列（打撈器）
|
圖號 NO.
|
編號
Code
|
名稱 Description
|
數量 Qty
|
|
1
|
CQU-01
|
吊環螺栓Eye Bolt
|
1
|
|
2
|
CQU-02
|
壓蓋 Cable Collar
|
1
|
|
3
|
CQU-03
|
軸承 Bearing
|
1
|
|
4
|
CQU-04
|
六角螺母Hex Nut
|
2
|
|
5
|
CQU-05
|
旋轉接頭 Cable Swivel Body
|
1
|
|
6
|
CQU-06
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
|
7
|
CQU-07
|
銷子 Spirol Shear Pin
|
1
|
|
8
|
CQU-08
|
閥座 Upper Over-Shot Body
|
1
|
|
9
|
CQU-09
|
六角螺母 Hex Nut
|
1
|
|
10
|
CQU-10
|
墊圈 Washer
|
1
|
|
11
|
CQU-11
|
活塞 Pump-ln Lip Seal
|
2
|
|
12
|
CQU-12
|
連接座 Seal Seat
|
1
|
|
13
|
CQU-13
|
鋼球 Stainless Steel Ball
|
1
|
|
14
|
CQU-14
|
鋼球架 Indicator Bushing
|
1
|
|
15
|
CQU-15
|
接頭 Lower Latch Body
|
1
|
|
16
|
CQU-16
|
連接螺栓 Overshot Threaded Adaptor
|
1
|
|
17
|
CQU-17
|
彈簧 Compression Spring
|
1
|
|
18
|
CQU-18
|
打撈鉤 Lifting Dog
|
2
|
|
19
|
CQU-19
|
擋圈 Retaining Ring
|
1
|
|
20
|
CQU-20
|
型片Washer
|
1
|
|
21
|
CQU-21
|
銷 Pin
|
1
|
|
22
|
CQU-22
|
銷 Pin
|
1
|
|
23
|
CQU-23
|
保險銷 Safty Pin
|
1
|
|
24
|
CQU-24
|
榜鉤架 Overshot Head
|
1
|
|
25
|
CQU-25
|
脫卡板手 Release Tool
|
1
|
|
26
|
CQU-26
|
打撈器 Overshot Assembly
|
1
|
|
