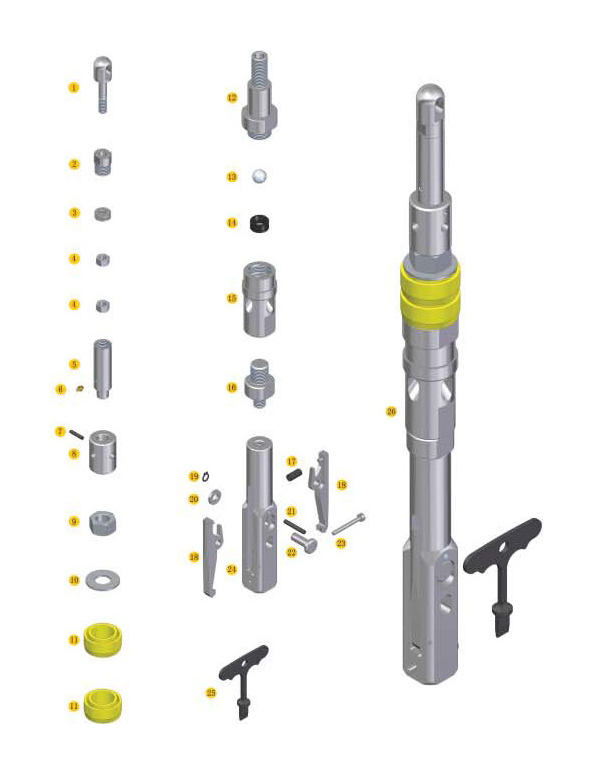

TWU系列（打撈器）
|
圖號 NO.
|
編號
Code
|
名稱 Description
|
數(shù)量 Qty
|
|
1
|
TWU-01
|
吊環(huán)螺栓Eye Bolt
|
1
|
|
2
|
TWU-02
|
壓蓋 Cable Collar
|
1
|
|
3
|
TWU-03
|
軸承 Bearing
|
1
|
|
4
|
TWU-04
|
六角螺母Hex Nut
|
2
|
|
5
|
TWU-05
|
旋轉(zhuǎn)接頭 Cable Swivel Body
|
1
|
|
6
|
TWU-06
|
壓注油杯 Hydraulic Grease Fitting
|
1
|
|
7
|
TWU-07
|
銷子 Spirol Shear Pin
|
1
|
|
8
|
TWU-08
|
閥座 Upper Over-Shot Body
|
1
|
|
9
|
TWU-09
|
六角螺母Hex Nut
|
1
|
|
10
|
TWU-10
|
塑圈Washer
|
1
|
|
11
|
TWU-11
|
活塞 Pump-ln Lip Seal
|
2
|
|
12
|
TWU-12
|
連接座Seal Seat
|
1
|
|
13
|
TWU-13
|
鋼球 Stainless Steel Ball
|
1
|
|
14
|
TWU-14
|
鋼球架 Indicator Bushing
|
1
|
|
15
|
TWU-15
|
接頭 Lower Latch Body
|
1
|
|
16
|
TWU-16
|
連接螺栓 Overshot Threaded Adaptor
|
1
|
|
17
|
TWU-17
|
彈簧 Compression Spring
|
1
|
|
18
|
TWU-18
|
打撈鉤 Lifting Dog
|
2
|
|
19
|
TWU-19
|
擋圈 Retaining Ring
|
1
|
|
20
|
TWU-20
|
塾片Washer
|
1
|
|
21
|
TWU-21
|
銷Pin
|
1
|
|
22
|
TWU-22
|
銷Pin
|
1
|
|
23
|
TWU-23
|
保險(xiǎn)銷Safty Pin
|
1
|
|
24
|
TWU-24
|
撈鉤架 Overshot Head
|
1
|
|
25
|
TWU-25
|
脫卡扳手Release Tool
|
1
|
|
26
|
TWU-26
|
打撈器 Overshot Assembly
|
1
|
|
